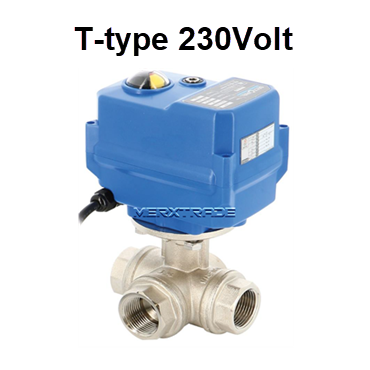

Electric actuated 3-way T port ball valve brass thread 230VAC/DC IP67
Electric actuated 3-way T port ball valve brass thread 230VAC/DC IP67
| Model: |
3-way T port |
Material body: |
Brass CW 617N Nickel-plated |
| Connection: |
Thread female BSPP ISO 228-1 |
Material ball: |
Brass CW 617N Chromium |
| Pressure: |
16bar |
Material seat: |
PTFE |
| Temperature: |
-10°C 100°C |
Operation: |
Electric on/off 230V AC/DC |
| Casing + lid: |
Plastic (ABS |
Motor protection: |
Thermal switch |
| Gear box: |
Treaded steel pinions |
Limit switches: |
2 adjustable switches |
| Anti-condensation: |
Integrated |
Auxiliary switches: |
2 adjustable dry switches |
| Supply voltage: |
230volt AC/DC |
Manual control: |
By key (Allen wrench) |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-514TB00000 |
| Body material |
Brass-nickel-plated |
| Disc / Ball / Wedge |
Brass |
| Seat |
PTFE |
