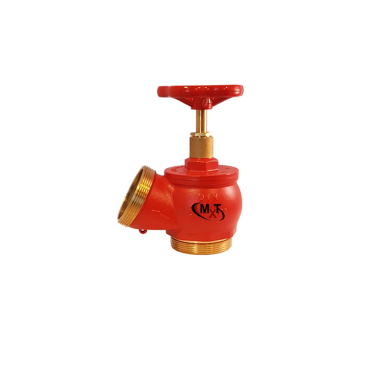

Fire fighting valve 30° angle red paint - brass - male thread BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
NBR
| Model: | 30 degrees angle landing valve | Material body: | Brass |
| Bonnet: | Screwed | Material disc: | Brass |
| Temperature: | -10°C +60°C | Material seat: | NBR |
| Pressure: | 16 bar | Sizes:: | 1" / 1.1/2"/ 2" / 2.1/2" |
| Actuating: | Handwheel | Made: | Germany |
| Note: | DIN 14461-3 NEN-EN 671 | Connection: | Storz (option) |
| Use: wet and dry fire extinguisher systems. |
| Connection options: Storz, Camlock, Guillemin. |
| SKU | MXT-90603R0000 |
|---|
| Body material | Brass |
|---|---|
| Disc / Ball / Wedge | Brass |
| Seat | NBR |
