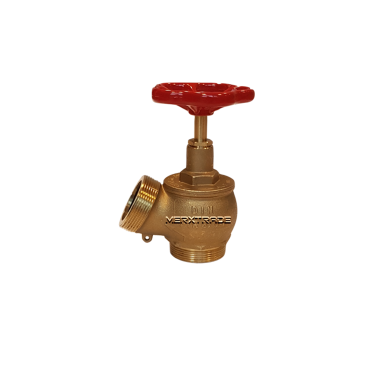

Fire fighting valve 30° angle - brass - male thread BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
NBR
| Model: | 30 degrees angle landing valve | Sizes: | 1" / 1.1/2" / 2" / 2.1/2" |
| Bonnet: | Screwed | Material body: | Brass |
| Connection: | Female thread BSPP | Disc: | With NBR ring |
| Pressure:: | 16 bar | Temperature: | -10°C +60°C |
| Actuating: | Handwheel | Pressure rating: | PN16 |
| Note: | DIN 14461-3 NEN-EN 671 | Origin: | Germany |
| Use: GG fixture net LUG / NA / Cam distance 81mm |
| Suitable for wet and dry fire extinguisher systems |
| Equivalent to AWG fire hydrant according to DIN 14461-3 |
| To order Storz couplings: see related products below. |
| SKU | MXT-9060300000 |
|---|
| Body material | Brass |
|---|---|
| Disc / Ball / Wedge | Brass |
| Seat | NBR |
