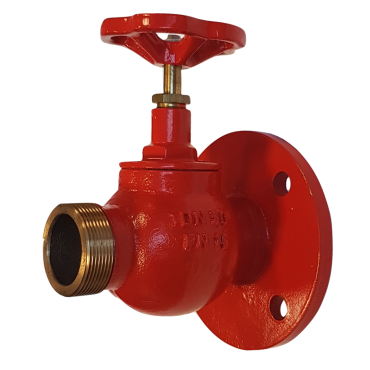

Fire fighting valve straight - bronze - flanged / male thread
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Straight | Sizes: | DN40 to DN65 |
| Bonnet: | Screwed | Material body: | Bronze |
| Connection: | Flanged versus thread BSP | Disc: | With NBR ring |
| Actuated: | Handwheel | Temperature: | -10°C +60°C |
| Standard: | Without coupling | Pressure rating: | PN16 |
| Standard: | Bronze | Option: | Red paint ( € 25,-- each ) |
Datasheet (PDF)
| SKU | MXT-9080300000 |
|---|
| Body material | Bronze |
|---|---|
| Disc / Ball / Wedge | Brass |
| Seat | NBR |
