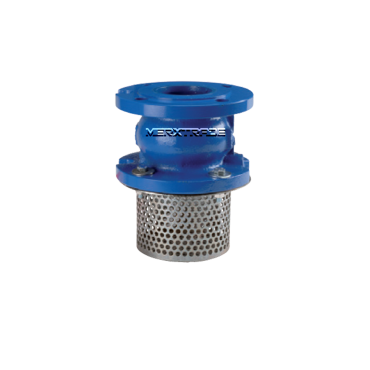

Check foot valve cast iron/stainlessteel/EPDM with steel zinc strainer

Model:	Straight with spring and strainer	Material body:	Cast iron EN-GJL-250
Connection:	Flanges drilled PN16	Material disc:	St.St. AISI 304
Pressure:	16bar	Material seat ring:	EPDM
Temperature:	-10°C/+110°C.	Material strainer:	Galvanized carbon steel
Mounting:	All positions	Protection:	Epoxy painting 80 microns

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-1350368050	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN50	50	177	€157.98	- +
MXT-1350368065	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN65	65	230	€181.82	- +
MXT-1350368080	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN80	80	260	€234.09	- +
MXT-1350368100	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN100	100	320	€317.70	- +
MXT-1350368125	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN125	125	370.	€413.39	- +
MXT-1350368150	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN10/16 - DN150	150	451	€593.87	- +
MXT-1350368200	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN16 - DN200	200	588	€1,011.16	- +
MXT-1350368250	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN16 - DN250	250	744	€1,538.21	- +
MXT-1350368300	Check foot valve flanged Cast iron/St.St.304/EPDM Strainer st. zinc PN16 - DN300	300	815	€3,034.50	- +
