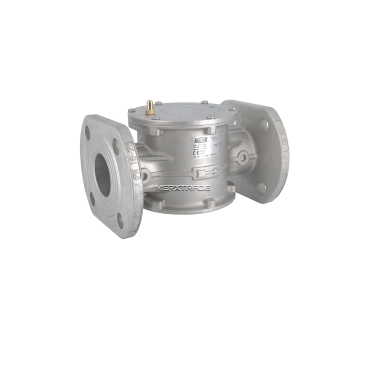

Gas filter aluminium type FM flanged DN50 up to DN300 PS 6bar filtering 50µm / 10µm
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | FM flanged 6 bar | Material body: | Aluminium |
| Connection: | Flanged drill PN16 | Material Seal: | NBR |
| Pressure: | 6 bar | Material filter: | synthetic |
| Temperature: | -40°C / 70°C | Filtering: | DN50 up to DN100 50 µm |
| Norm: | CE 0497 | Filtering: | DN125 up to DN300 10 µm |
| Regulation (EU) 2016/426 (GAR) - EN 126 (Appliances burning gaseous fuels) |
| Pressure Equipment Directive (PED) 2014/68/EU |
| Madas gas filters are suitable for natural gas, methane and LPG |
| Pressure taps are provided on the body of the filters. |
| 1/8" G upstream pressure tap |
| Gas filters are designed to remove impurities and small particles from gas |
| Used to protect the gas solenoid valves and the burner downstream. |
| Size DN50 up to DN100 filtering 50 µm Size DN125 up to DN300 filtering 10 µm |
| DN300 always on request. |
Datasheet (PDF)
| SKU | FM109551AM |
|---|
| Body material | Aluminium |
|---|
