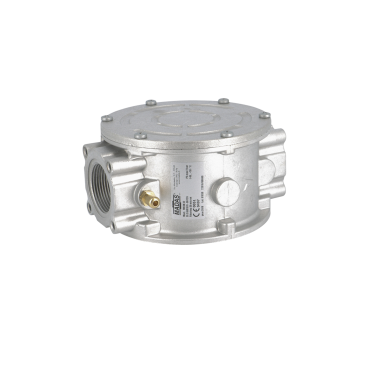

Gas filter aluminium type FM thread BSPP Rp 1/2" up to 2" PS 2bar filtering 50µm
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
| Model: | FM female thread 2 bar | Material body: | Aluminium |
| Connection: | Thread female BSPP Rp | Material Seal: | NBR |
| Pressure: | 2 bar | Material filter: | synthetic |
| Temperature: | -40°C / 70°C | Filtering: | 50 µm |
| Norm: | CE 0497 | Brand: | MADAS |
| Regulation (EU) 2016/426 (GAR) - EN 126 (Appliances burning gaseous fuels) |
| Pressure Equipment Directive (PED) 2014/68/EU |
| Madas gas filters are suitable for natural gas, methane and LPG |
| Pressure taps are provided on the body of the filters. |
| 1/8" G upstream pressure tap |
| Gas filters are designed to remove impurities and small particles from gas |
| Used to protect the gas solenoid valves and the burner downstream. |
Datasheet (PDF)
| SKU | FM1095000M |
|---|
| Body material | Aluminium |
|---|
