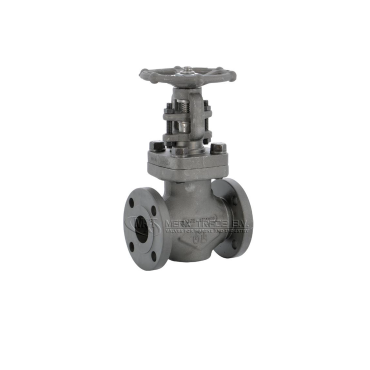

Gate valve flanged carbon steel TRIM.5 ANSI.300#
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
ANSI 300#
TRIM 5
| Model: | Flanged TRIM 5 | Material body: | Steel ASTM A105N |
| Connection: | Flanged ANSI 300# | Material wedge: | ASTM A182 F6a Stellite |
| Pressure: | 50 bars see PDF | Material seat: | ASTM A276 Tp 410 Stellite |
| Temperature: | - 29°C to + 425°C see data sheet | Operation: | Hand wheel |
| Design: | To ISO 15761 and API 602 8th |
Brand: | OMB |
| 2 side flow direction |
| Use: Petroleum industry, steam, heavy duty |
Datasheet (PDF)
| SKU | MXT-1310022000 |
|---|
| Body material | Steel ASTM A105N |
|---|---|
| Disc / Ball / Wedge | ASTM A182 F6a Stellite |
| Seat | ASTM A276 Tp 410 Stellite |
