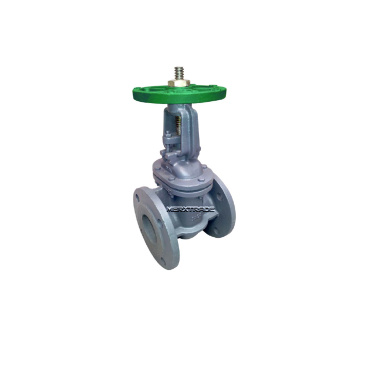

Gate valve F4 rising stem- ductile iron / stainless steel 304 PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | F4 with rising stem | Material body: | Ductile iron EN-GJS-500-7 |
| Pressure max: | 16 bar | Material wedge: | Ductile iron EN-GJS-500-7 |
| Temperature: | - 10°C to + 180°C | Material wedge ring: | Stainless steel AISI 304 |
| Connection: | Flange PN16 drill | Material body seat: | Stainless steel AISI 304 |
| Paint: | RAL 7011 grey 90 μm | Material stem: | Stainless steel AISI 304 |
Datasheet (PDF)
| SKU | MXT-319159000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Ductile+AISI304 |
| Seat | SS AISI.304 |
