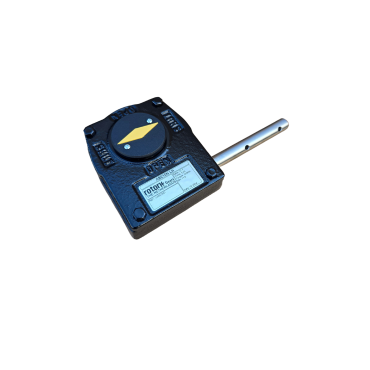

Gearbox Rotork cast iron -AB210N-IP67-torque 330NM

Gearbox cast iron with flat indicator
pipe steel handwheel ( option) see order line
Suitable for butterfly valves and quarter-turn valves.
Due to its strong robust design suitable for heavy duty.
Housing sealed to IP67 protection class
This type is suitable for outdoor installation.
Adjustable through integrated end stops.
Shaft of stainless steel.
Max torque: 330 Nm

Mounting flange size according to ISO 5211:   F05 / F07 / F10
Suitable for shaft in square and 45 degree position set easily by a double keyway.
