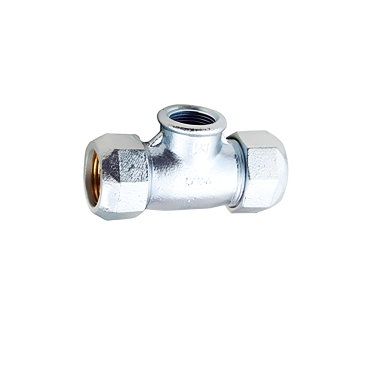

Compression fittings T-piece malleable Iron/galva/NBR female BSPT
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR (nitrilbutadieenrubber)
NBR
| Model: | Compression coupling T-piece | Material body: | malleable iron galvanised |
| Connection: | Clamp+ Rp EN 10226-1 & ISO 7-1 | Material sealing: | NBR |
| Temperature: | +80 °C | Bending angle max:: | 3 degrees |
| Pressure: | 16 bars (water) | Use: | New installation and repair |
| SKU | 88CFSN40000 |
|---|
| Body material | Malleable.cast.iron.Galva |
|---|---|
| Seat | NBR |
