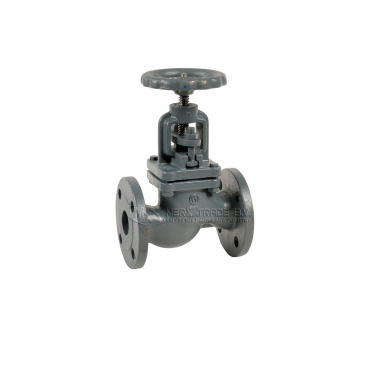

Globe valve flanged with fixed disc cast iron/stainless steel
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Straight fixed disc | Material body: | Cast iron EN GJL-250 |
| Connection: | Flanges PN10/16 up to DN150 PN16 to DN200 | Material disc ring: | St.St. AISI 420 |
| Pressure: | 16 bars | Material seat ring: | St.St. AISI 420 |
| Temperature: | - 10°C + 120°C | Bonnet gasket: | Graphite |
Datasheet (PDF)
| SKU | MXT-241470 |
|---|
| Body material | Cast iron-GG25-EN-GJL-25 |
|---|---|
| Disc / Ball / Wedge | SS 420 ( 1.4021 ) |
| Seat | SS-420 |
Ready for shipment within 1 week
Request a quote for current lead times
Urgent delivery available upon request
