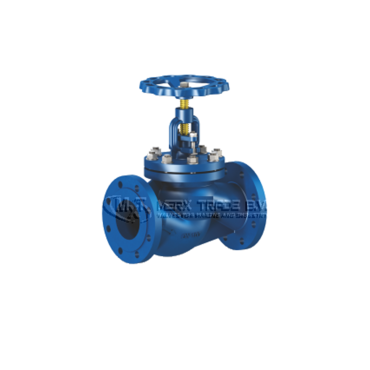

Globe valve flanged fixed.disc steel/bronze PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Fixed disc | Material body: | Steel GP240GH |
| Connection: | Flanged PN10/16 | Material Disc: | Bronze Rg5 |
| Pressure: | up to DN200 16 bar above see PDF | Material seat: | Bronze Rg5 |
| Temperature: | 120°C see data sheet | Operation: | Hand wheel |
| Steam: | 12bar maximum | Brand: | JC valves |
| Fire safe ISO 10497 : 2004, API 607 5th, BS 6755 Part.2 and API 6FA |
| Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air |
| SIL2 according to IEC/EN 61508, SIL 3 possible according to the type of installation |
Datasheet (PDF)
| SKU | MXT-3980060000 |
|---|
| Body material | Steel |
|---|---|
| Disc / Ball / Wedge | Bronze |
| Seat | Bronze |
