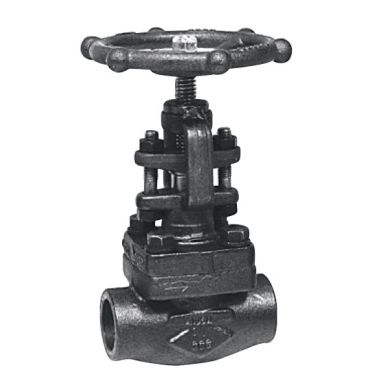

Globe valve trim 8 forged steel 800lbs thread BSP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
TRIM 8
800.lbs
97/23/EC directive N° 0036 - Risk category III / Module H - A105 carbon steel body - TRIM 8 (stellite seat) -Bolted gland pack & bonnet - Rising stem for gate & globe valves - Max. pressure: 138 bar -Temperature range: -20°C/+440°C.
Datasheet (PDF)
| SKU | MXT-1739414 |
|---|
| Body material | Carbon.steel-ASTM-A105N |
|---|---|
| Disc / Ball / Wedge | ASTM-A276 type 410 |
| Seat | SS-ASTM-A276-type.410 + Stellite.GR.6’. |
