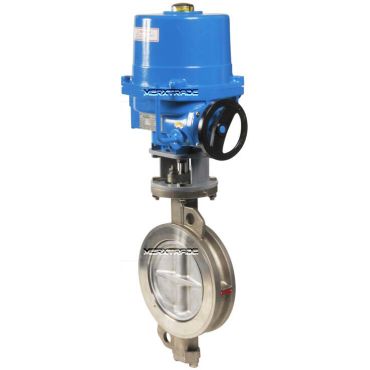

High Performance butterfly valve Stainless Steel Fire-safe with Electric actuator 230V-ATEX PN25
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | Butterfly valve FIRE-SAFE | Sizes | DN 50-300 mm |
| Design: | Double excentric | Material body: | SS ASTM A351 CF8M-316 |
| Connection: | Wafer | Material disc: | SS ASTM A351 CF8M-316 |
| Operation: | Electric | Material seat: | PTFE +SS+15% graphite |
| Pressure: | 25 bar |
Temperatuur: | -29 °C / + 210 °C. |
| Connection: | PN25 |
NA-X actuator: | DN50 till DN300 |
| Motor: | 230V AC actuator IP67 ATEX |
Emergency operation: | Handwheel |
| Marking code: | II 2 G Ex d IIC T4 zone 1 and 2 |
Body motor: | Epoxy aluminium |
| Gears: | Steel |
Datasheet (PDF)
| SKU | MXT-91301114 |
|---|
| Body material | SS ASTM A351 CF8M-SS316 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | PTFE with 15% graphite |
