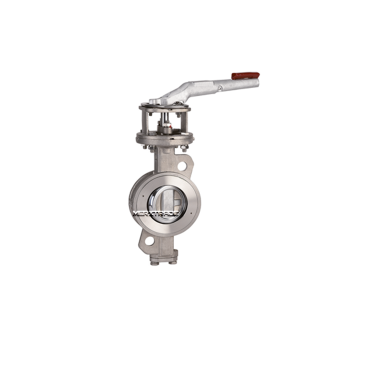

High Performance butterfly valve Stainless-steel with handlever-FIRE SAFE

High Performance butterfly valve Stainless-steel with handlever-FIRE SAFE
PTFE

High Performance butterfly valve Stainless-Steel with handlever
Model-wafer type with double eccentric disc

SPECIFICATIONS :
ï‚· 100% tightness
ï‚· Wafer type
ï‚· Between PN10/16
ï‚· Double eccentric
ï‚· Bidirectional with preferential flow direction indicated by the arrow
ï‚· Fire safe according to ISO 10497 : 2010
ï‚· ISO 5211 mounting pad
ï‚· Stainless steel CF8M-316 body and disc
ï‚· Min and max Temperature Ts : - 29°C to + 210°C
ï‚· Max Pressure Ps : 25 bars ( see graph )
ï‚· Full crossing stem
ï‚· Anti-static design
ï‚· Bi-directional sealing
ï‚· One-piece anti-blow out shaft
ï‚· Re-adjustable gland packing of graphite material
ï‚· Replaceable seat
ï‚· 10 positions ductile iron handle, with locking device up to DN150
ï‚· Gear box from DN 200 option.
ï‚· Ductile iron EN GJS-400-15 handle with silver painting RAL 9006 color
ï‚·
Yoke- ASTM A351 CF8

USE :
ï‚· Heating, geothermics, industrial cold, shipbuilding, petrochemical, maritime systems, corrosive media, gases, tanker vessel, Oil refining, LNG, Air Seperation, Pulp & Paper, Fossil & Cogeneration Power, Refinery.
ï‚· Steam : 10 bars maximum

download Datasheet (PDF)
SKU MXT-229231192000
Body material Stainless steel-ASTM-A351-CF8M-316
Disc / Ball / Wedge Stainless-steel ASTM A351 CF8M-316
Seat PTFE + carbon graphite
gost-r firesafe ce tuv 31 iso9001
50
43
IMPA 756331
€796.89
Qty
minus-sm
plus-sm
65
46
IMPA 756332
€883.91
Qty
minus-sm
plus-sm
80
47
IMPA 756333
€1,191.41
Qty
minus-sm
plus-sm
100
53
IMPA 756334
€1,397.16
Qty
minus-sm
plus-sm
125
57
IMPA 756335
€1,767.18
Qty
minus-sm
plus-sm
150
56
IMPA 756336
€1,972.26
Qty
minus-sm
plus-sm
