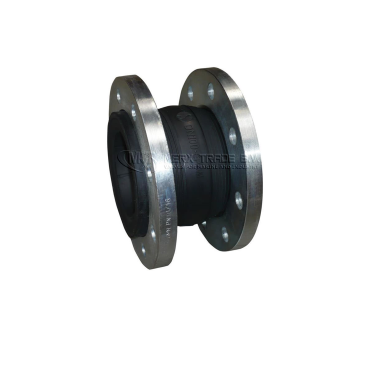

Compensator flanged Lloyd's approval EPDM (length 130mm)
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Model: | Lloyd's appr. swiveling flanges | Material body: | EPDM |
| Connection: | Flanged PN10/16 EN 1092-1 | Material flanges: | Steel electro galvanized |
| Temperature: | -10°C / +100°C | Reinforcement: | Nylon cord |
| Pressure: | 16 bar see graph PDF | Movements: | Lineair & angular |
| Use: Shipbuilding, marine, industry, agriculture, heating systems, |
| appr. certificate: Lloyd’s Register Marine |
Datasheet (PDF)
| SKU | MXT-55711505 |
|---|
| Material bellow | EPDM |
|---|---|
| Body material | EPDM-Steel zinc flange |
