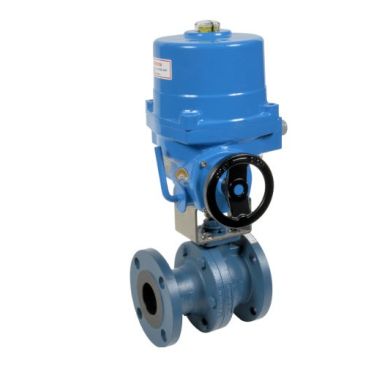

Ball valve JC flanged electric SA-NA 230Volt type 515AIT Steel/Stain.St./PTFE ANSI150
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
ANSI 150#
PTFE
| Model: | 3-piece body | Material body: | Steel WCB 1.0619 |
| Connection: | Flanges PN16/40 | Material ball: | Stainless.steel CF8M/316 |
| Pressure: | 40 bar check tech data PDF | Material seat: | PTFE + 50% Stainless steel |
| Temperature: | -20°C 200°C for the ball valve | Operation: | Electric on/off 230V AC/DC |
| Electrical Actuator IP67 |
| Casing + lid: | Aluminium | Motor protection: | Thermal switch |
| Gear box: | Treaded steel pinions | Limit switches: | 2 adjustable switches |
| Anti-condensation: | Integrated | Auxiliary switches: | 2 auxiliary limit switches |
| Supply voltage: | 230volt AC | Manual control: | By allen key or handwheel |
| Model: |
SA05/NA09/NA15 |
Datasheet (PDF)
| SKU | MXT-515AIT0000 |
|---|
