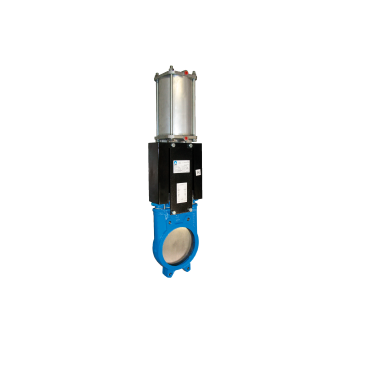

Knife gate valve CMO pneumatic double act GG25 - St.St.304 - EPDM PN10
| Model: | With limit switch | Material body: | Steel EN 1.0619 |
| Connection: | Flanged PN16/40 | Material disc: | St.St. EN 1.4408 check PDF |
| Temperature: | Fluid -20°C / +200°C | Material seat: | PTFE filled with 15 % glass |
| Pressure: | up to DN50 PN40 > PN16 see pdf | Steam: | 11 bars maximum |
| Limit switch | |||
| IP code: | IP 67 | Temperature: | Ambiant -20°C / +80°C |
| Power: | 250V AC-5A 2 SPDT Silver Plated | Model: | SF 01200 |
| Body material: | Aluminium | Mounting bridge: | Stainless steel |
| Dome: | Polycarbonate | Coating: | Polyester paint |
| Options |
| SF 73200 2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2 |
| SF 75200 2 inductive detectors 2 threads NO/NC 5-36V DC IFM IS 5026 |
| SF 83200 2 inductive detectors 2 threads NO 5-60V DC P+F NBB3 V3 Z4 |
| Indicator for 3 way L valves Indicator for 3 way T valves |
| SF3D 01200 IP65 ATEX Ex 2 SPDT silver plated mechanical switches 250V AC - 5A |
| SF3G 6H200 IP65 ATEX Ex 2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2 |
| SIB 70221-2 IP67 ATEX Ex 2 inductive detectors NAMUR P+F NJ2 V3N / N - NO |
| Use: Shipbuilding, Chemical industries, petrochemical industries, hydraulic installation, compressed air, heating and water distribution |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-CMOA110000 |
| Body material | Cast iron-GG25-EN-GJL-25 |
| Disc / Ball / Wedge | Stainless steel-304 |
| Seat | EPDM |
