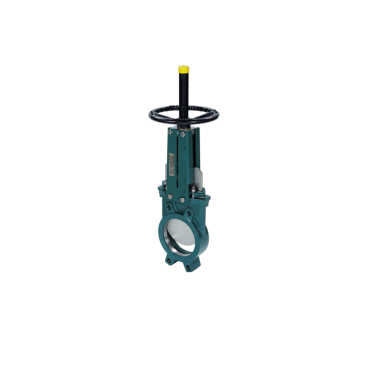

Knife gate valve Uni-directional handwheel GGG50 - St.St.304 - NBR PN10
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
UNI-Direct
DIN
| Model: | Uni-directional | Material body: | Ductile iron EN-GJS-500-7 |
| Connection: | Flanged-wafer PN10 | Material gate: | Stainless st. A 182 AISI 304 |
| Temperature: | -10°C / +80°C | Material seat: | NBR |
| Pressure: | DN50 - DN250 10 bar | Actuating: | Handwheel |
| DN300- DN450 7 bar | Actuating: | Rising stem | |
| DN500 - DN600 4 bar | Other info: | Check data sheet |
Datasheet (PDF)
| SKU | MXT-44VGU1N000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-304 |
| Seat | NBR |
