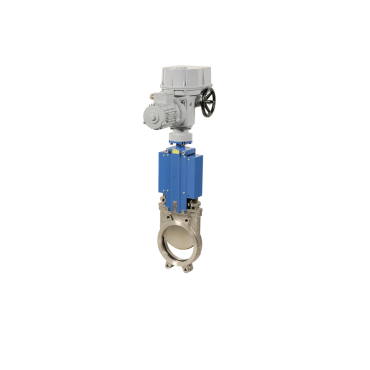

Knife gate valve electric actuated 230V AC IP67 unidirect thight stainless steel CF8M 316-metal seal
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
UNI-Direct
DIN
| Model: | Knife valve |
Size range |
DN 50-300 mm |
| Disc type: | Gate UNI-Directionnal |
Material body: | CF8M |
| Connection: | Wafer with bolt holes | Material disc: | Stainless steel 316 |
| Operation: | Electric multi turn |
Material seat: | Metal |
| Pressure rating: | DN50-200=10bar 250=8bar 300=6bar |
Temperature: | 0 °C / + 100 °C. |
| Flange connect |
PN10 |
Actuator brand: | Regada |
| Actuation: | 230V AC IP67 |
Safety overdrive: | Handwheel |
| Actuator model: |
SO2=DN50-150 MO3=DN200-300 |
Protection rate: | IP67 |
Datasheet (PDF)
| SKU | MXT-1730660000 |
|---|
| Body material | Stainless.steel-CF8M |
|---|---|
| Disc / Ball / Wedge | Stainless steel-316 |
| Seat | Metal |
