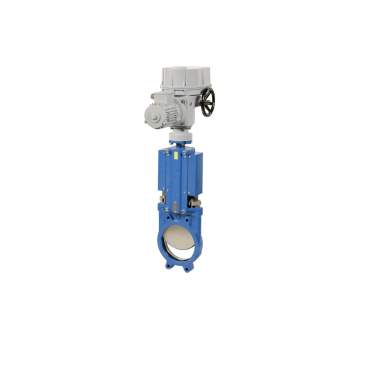

Knife gate valve electric actuated 230V AC IP67 unidirect thigh cast iron GG25-St.St.304-metal
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
UNI-Direct
DIN
| Model: | Knife valve |
Size range |
DN 50-300 mm |
| Disc type: | Gate UNI-Directionnal |
Material body: | Cast iron EN-GJL 250 |
| Connection: | Wafer with bolt holes | Material disc: | Stainless.steel 304 |
| Operation: | Electric multi turn |
Material seat: | Metal |
| Pressure rating: | DN50-200=10bar 250=8bar 300=6bar |
Temperature: | -10 °C / + 90 °C. |
| Flange connect |
PN10 |
Actuator brand: | Regada |
| Actuation: | 230V AC IP67 |
Safety overdrive: | Handwheel |
| Actuator model |
SO2=DN50-150 SO3=DN200-300 |
Protection rate: | IP67 |
Datasheet (PDF)
| SKU | MXT-1760660000 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | SS-304. |
| Seat | Metal |
