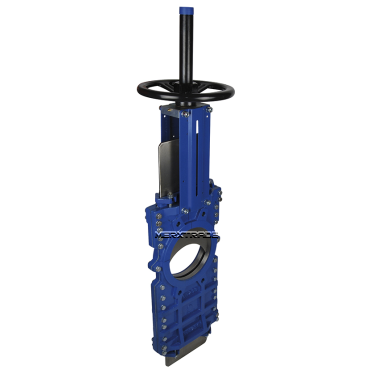

Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat

Skip to the end of the images gallery

Skip to the beginning of the images gallery

download datasheet

Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat

Model:	Through conduit bidirectional	Material body:	Cast ironEN GJL-250
Connection:	Wafer	Material gate:	Stainless steelAISI 304
Pressure:	DN50-125=10 bar > see PDF	Material seat:	EPDM (NBR on request)
Temperature:	-15°C / +130°C EPDM	Operation:	Non-rising handwheel

Note: Dn 50-65 and DN 400 and above on request.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	MXT-5402179
Body material	Cast Iron-GG25-EN-GJL-250
Disc / Ball / Wedge	SS 304
Seat	EPDM

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-5402179050	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN50	50	40	€693.27	- +
MXT-5402179065	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN65	65	40	€704.93	- +
MXT-5402179100	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN100	100	50	€852.08	- +
MXT-5402179125	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN125	125	50	€1,119.30	- +
MXT-5402179150	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN150	150	60	€1,320.71	- +
MXT-5402179200	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN200	200	60	€1,913.24	- +
MXT-5402179250	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN250	250	70	€2,637.53	- +
MXT-5402179300	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN300	300	70	€3,590.30	- +
MXT-5402179350	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN350	350	96	€5,302.12	- +
MXT-5402179400	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN400	400	100	€5,472.88	- +
MXT-5402179450	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN450	450	106	€12,768.59	- +
MXT-5402179500	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN500	500	110	€14,592.88	- +
MXT-5402179600	Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat DN600	600	110	€30,450.00	- +
