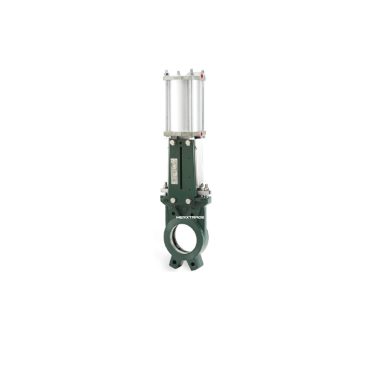

Knife gate valve pneumatic double act GGG50 - St.St.304 - Metal PN10
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
UNI-Direct
DIN
| Model: | Unidirect 1 way | Material body: | Ductile iron EN-GJS-500-7 |
| Connection: | Flanged-wafer PN10 | Material gate: | Stainless st. A 182 AISI 304 |
| Temperature: | -10°C / +80°C | Material seat: | Metal |
| Pressure: | DN50 - DN250 10 bar | Actuating: | Pneumatic double act |
| DN300- DN450 7 bar | Actuator material: | Aluminium | |
| DN500 - DN600 4 bar | |||
| DN700 - DN1000 2 bar |
Datasheet (PDF)
| SKU | MXT-44VG3M0000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-304 |
| Seat | Metal |
