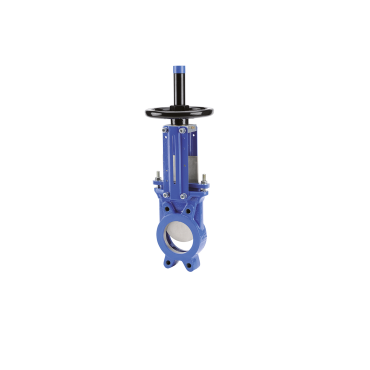

Knife gate valve Uni-direct tightness GG25 / St.St.304 / NBR

Model: Uni-direct Material body: Cast iron EN GJL-250 GG25
Aansluiting: Between flanges PN10 Material gate: Stainless steel.AISI 304
Pressure: 10 bar t/m DN200 >check PDF Material seat: NBR
Temperature: -10°C  +90°C Actuating: Handwheel

Max pressure by size:

DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700-1200
Bar 10 10 10 10 10 10 10 8 6 4 4 3 3 3 2

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-5402170
Body material Cast-iron-GG25-EN-GJL-250.
Disc / Ball / Wedge SS-304.
Seat NBR
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-5402170065 Knife-Gate-Valve-Uni-directional-Thightness-NBR 65/PN10 65 40
€230.80
- +
MXT-5402170080 Knife-Gate-Valve-Uni-directional-Thightness-NBR 80/PN10 80 50
€241.07
- +
MXT-5402170100 Knife-Gate-Valve-Uni-directional-Thightness-NBR 100/PN10 100 50
€267.32
- +
MXT-5402170125 Knife-Gate-Valve-Uni-directional-Thightness-NBR 125/PN10 125 50
€321.94
- +
MXT-5402170150 Knife-Gate-Valve-Uni-directional-Thightness-NBR 150/PN10 150 60
€366.03
- +
MXT-5402170200 Knife-Gate-Valve-Uni-directional-Thightness-NBR 200/PN10 200 60
€610.04
- +
MXT-5402170250 Knife-Gate-Valve-Uni-directional-Thightness-NBR 250/PN10 250 70
€773.68
- +
MXT-5402170300 Knife-Gate-Valve-Uni-directional-Thightness-NBR 300/PN10 300 70
€1,044.20
- +
MXT-5402170350 Knife-Gate-Valve-Uni-directional-Thightness-NBR 350/PN10 350 96
€1,839.91
- +
MXT-5402170400 Knife-Gate-Valve-Uni-directional-Thightness-NBR 400/PN10 400 100
€2,336.80
- +
MXT-5402170450 Knife-Gate-Valve-Uni-directional-Thightness-NBR 450/PN10 450 106
€2,802.27
- +
MXT-5402170500 Knife-Gate-Valve-Uni-directional-Thightness-NBR 500/PN10 500 110
€2,949.46
- +
MXT-5402170600 Knife-Gate-Valve-Uni-directional-Thightness-NBR 600/PN10 600 110
€4,811.95
- +
MXT-5402170700 Knife-Gate-Valve-Uni-directional-Thightness-NBR 700/PN10 700 110
€8,491.69
- +
MXT-5402170050 Knife-Gate-Valve-Uni-directional-Thightness-NBR 50/PN10 50 40
€214.63
- +

Unidirectional cast iron knife gate valve for water, water treatment, chemical pulp, powders, food industry, chemistry
Ribbed support plate for a better rigidity.

Interchangeable seat NBR, EPDM, FKM, SILICONE, PTFE.

STANDARDS :
Manufacturer certified ISO 9001 : 2015

DIRECTIVE 2014/68/EU : Products excluded from directive ( Article 4, § 3 )

Certificate 3.1 on request

Pressure test according to ISO 5208, Rate A

Between flanges PN10 according to EN 1092-1 PN10

SPECIFICATIONS :
Opened or closed valve

Rising non rotating stem, non rising handwheel

Unidirectional tightness ( Respect the flow direction indicated by the arrow )

Weak head loss

Between flanges PN10

Full crossing threaded lower holes and blind threaded top holes

With handwheel

With lever or chain handwheel ( option )

Possible with bipolar sensor O + C , voltage AC 15-240V 3A, IP66 type XCK M115C

Deflector ( option )

50% epoxy 50% polyester painting blue colour RAL 5005

Other seats on request ( FKM, PTFE, SILICONE ...)
