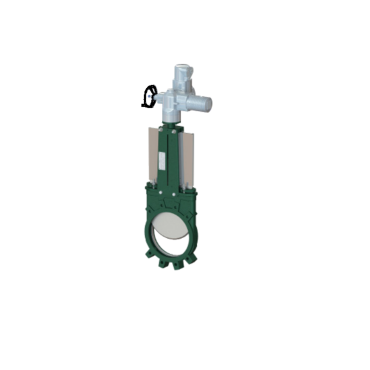

Knife gate valve unidirectional AUMA electric 400Volt GGG50 - St.St.304 - NBR drill PN10
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
UNI-Direct
DIN
| Model: | Uni-direct knife gate valve | Material body: | Ductile iron GGG50 |
| Connection: | Flanged PN10 | Material disc: | St.St. AISI 304 |
| Temperature: | -10°C / +80°C | Material seat: | NBR |
| Pressure: | up to DN250 10 bar > see PDF | Actuating: | Auma actuator 400 Volt AC |
| Electric actuator | AUMA SA Multi turn | ||
| IP code: | IP 68 | Temperature: | Ambiant -25°C / +55°C |
| Power: | 400 Volt AC | Model: | SA |
| Body material: | Aluminium epoxy | Duty factor: | S4-25% / 10 cycles by hour. |
Datasheet (PDF)
| SKU | MXT-44A4N00000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-304 |
| Seat | NBR |
