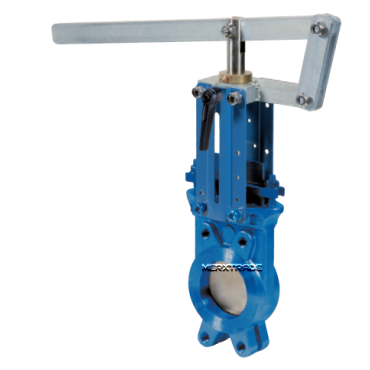

Knife gate valve with Lever Unidirect thightness cast iron -St.St.304-NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
UNI-Direct
DIN
| Model: | Knife gate valve | Material body: | Cast iron GG25 |
| Actuating: | Lever operated | Material wedge: | Stainless steel 304 |
| Connection: | Between flanges PN10 | Material seat: | NBR |
| Temperature: | -10 ° C / + 90 ° C | ||
| Pressure: | DN50 up to DN200 PN10 | Pressure: | DN250 PN8 DN300 PN6 |
Datasheet (PDF)
| SKU | MXT-5409-170 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | SS-304. |
| Seat | NBR |
