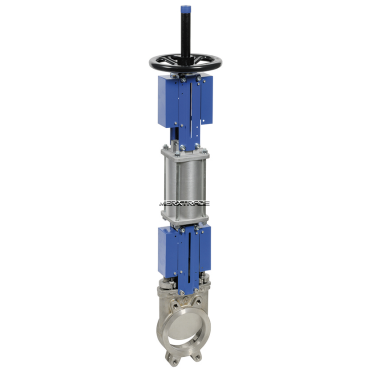

Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat

Model:	Double acting - unidirectional	Material body:	Stainless.steel CF8M 316
Connection:	Wafer	Material gate:	Stainless steel AISI 316
Pressure:	10 bar untill DN200 > see PDF	Material seat:	EPDM
Actuator:	Pneumatic + manual override	Action:	Double acting
Temperature:	0°C / +100°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-5404172300	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN300	300	70	€4,280.64	- +
MXT-5404172250	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN250	250	70	€3,060.56	- +
MXT-5404172200	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN200	200	60	€2,293.56	- +
MXT-5404172150	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN150	150	60	€1,549.38	- +
MXT-5404172125	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN125	125	50	€1,340.64	- +
MXT-5404172100	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN100	100	50	€1,154.08	- +
MXT-5404172080	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN80	80	50	€973.14	- +
MXT-5404172065	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN65	65	40	€806.68	- +
MXT-5404172050	Knive gate valve pneumatic actuated with manual override unidirectional double acting PN10 EPDM seat DN50	50	40	€761.46	- +
