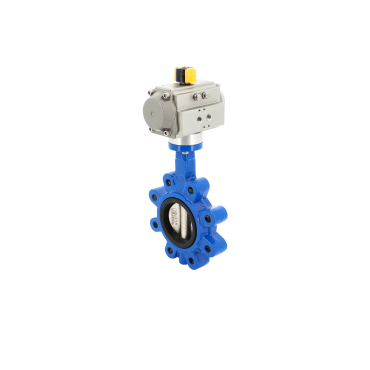

Butterfly valve LUG pneumatic double acting RE GGG40/St.St./NBR PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR (nitrilbutadieenrubber)
NBR
DIN
| Model: | Wafer Pneumatic Double act | Material body: | Nodulair cast iron GGG40 |
| Connection: | PN10/16 | Material Disc: | Stainless steel CF8M 316 |
| Pressure: | up to DN200 16 bar above 10 bar | Material seat: | NBR |
| Temperature: | -10°C +80°C | Operation: | Double acting |
| SKU | 6832NDA0000 |
|---|
| Body material | Ductile iron GGG40. |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | NBR |
