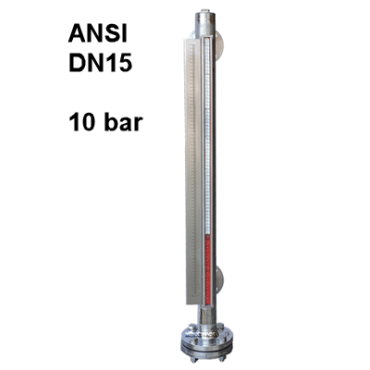

Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar

Model: Magnetic level gauge Material: Stainless steel 316L
Connection: ANSI 150 Material floater: Stainless steel 316Ti
Pressure: 10 bar Scale: Indication scale in SS316L included.
Temperature: -50°C / 400°C Note: Custom sizes also available.

Material and hydro test certicicate or request.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-PG220A1500
Body material Stainless.Steel-316L
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-PG220A1505 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=500mm 15 500
€1,608.00
- +
MXT-PG220A1506 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=600mm 15 600
€1,700.96
- +
MXT-PG220A1507 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=700mm 15 700
€1,740.38
- +
MXT-PG220A1508 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=800mm 15 800
€1,779.79
- +
MXT-PG220A1509 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=900mm 15 900
€1,819.20
- +
MXT-PG220A1510 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1000mm 15 1000
€1,858.62
- +
MXT-PG220A1511 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1100mm 15 1100
€2,006.84
- +
MXT-PG220A1512 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1200mm 15 1200
€2,083.74
- +
MXT-PG220A1513 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1300mm 15 1300
€2,123.15
- +
MXT-PG220A1514 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1400mm 15 1400
€2,162.56
- +
MXT-PG220A1515 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1500mm 15 1500
€2,201.98
- +
MXT-PG220A1516 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1600mm 15 1600
€2,241.39
- +
MXT-PG220A1517 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1700mm 15 1700
€2,282.51
- +
MXT-PG220A1518 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1800mm 15 1800
€2,423.03
- +
MXT-PG220A1519 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=1900mm 15 1900
€2,464.16
- +
MXT-PG220A1520 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2000mm 15 2000
€2,503.57
- +
MXT-PG220A1521 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2100mm 15 2100
€2,694.64
- +
MXT-PG220A1522 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2200mm 15 2200
€2,814.16
- +
MXT-PG220A1523 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2300mm 15 2300
€2,851.86
- +
MXT-PG220A1524 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2400mm 15 2400
€2,891.27
- +
MXT-PG220A1525 Magnetic level gauge 2 connections St.St flanged ANSI DN15 10bar L=2500mm 15 2500
€2,930.69
- +
