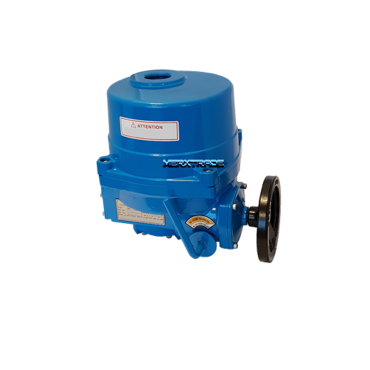

MXT-Electric-Actuator-NA-X-ATEX

ATEX II 2 G EExd II B T4. Specifications: Compact type - 90° ±5° angle operating - Epoxy coated aluminium enclosure - Resistance heater 20W - Room temperature range: -20°C/+70°C - Torque limiter (except NA06 & NA09) - S2 duty service: 70% of time. Standard equipment: 2 adjustable limit switches - 2 dry auxiliary limit switches 250V 16A - Thermal protection - Steel reducing box - Position indicator - Safe handwheel driving - Supplied electrical connection: gland packing M20 x 1,5 ISO 5211 pad, star connection.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-NA9176313000
Body material Aluminium+Epoxy polyester coating
Grouped product items
SKU Product Name DN IMPA € / st Qty
MXT-NA9176313060 Electric actuator quarter turn NA06-X ATEX 230V AC IP67 - Torque 60Nm F07-17 IMPA 752214
€1,244.18
- +
MXT-NA9176313090 Electric actuator quarter turn NA09-X ATEX 230V AC IP67 - Torque 90Nm F07-17 IMPA 752215
€1,290.18
- +
MXT-NA9176313150 Electric actuator quarter turn NA15-X ATEX 230V AC IP67 - Torque 150Nm F07/F10-17 IMPA 752216
€1,611.90
- +
MXT-NA9176313280 Electric actuator quarter turn NA28-X ATEX 230V AC IP67 - Torque 280Nm F10/F12-22 IMPA 752217
€1,767.83
- +
MXT-NA9176313380 Electric actuator quarter turn NA38-X ATEX 230V AC IP67 - Torque 380Nm F10/F12-27 IMPA 752218
€2,037.44
- +
MXT-NA9176313600 Electric actuator quarter turn NA60-X ATEX 230V AC IP67 - Torque 600Nm F12/F14-27 IMPA 752219
€2,395.03
- +
MXT-NA9176313023 MXT-Gland-pack ATEX 1/2" M20 x 1,5 1/2"-M20x1,5 IMPA 752220
€29.40
- +
MXT-NA9176313024 MXT-Cap ATEX 1/2" M20 x 1,5 1/2"-M20x1,5 IMPA 752221
€24.98
- +
