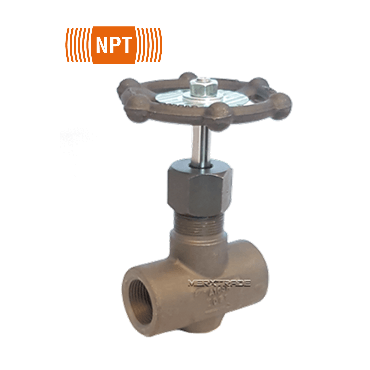

Needle valve forged steel female/female thread NPT PN200
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NPT
| Model: | Needle valve | Material body: | Forged steel ASTM A105N |
| Connection: | Thread female NPT ANSI B1.20 |
Material needle: | Stainless st AISI 410 hardened |
| Temperature: | - 29°C up to + 250°C | Material stem: | Stainless st AISI 410 |
| Max pressure: | 200 bars | Material packing: | Graphite |
Datasheet (PDF)
| SKU | MXT-226484 |
|---|
| Body material | Forged.Carbon.Steel-ASTM-A105N |
|---|---|
| Disc / Ball / Wedge | Stainless st AISI 410 hardened |
| Seat | Forged.Carbon.Steel-ASTM-A105N |
