Pinch Valve Pneumatic Flanged Food Quality Alu/St.St. bushing
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

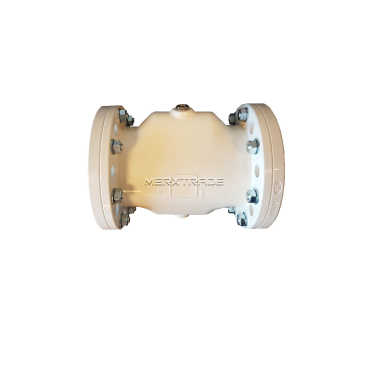

Air operated pinch valve AKO.
Body: aluminium
Flange: aluminum flange with steel/ stainless steel bushing 1.4404
Sleeve: natural rubber (NR-LW) food quality
Valve finish: powder coated 60-80µm white RAL9010
Temperature range: -10°C to max. +80°C
Operating pressure: max. 6 bar (DN 200 max. 4 bar, DN 250 max. 2 bar)
Control pressure: max. 1,5 to 2 bar higher than the medium's pressure
Version with stainless steel sleeve, from flange surface up to the rubber sleeve.
Advantages:
•Completely free flow
•No clogging by media
•Minimum frictional resistance
•Quick opening and closing
•Low energy consumption
Made in Germany Premium Quality
| SKU | MXT-2080120000 |
|---|
| Body material | Aluminium |
|---|---|
| Disc / Ball / Wedge | Stainless.steel |
| Seat | Natural rubber food quality |
