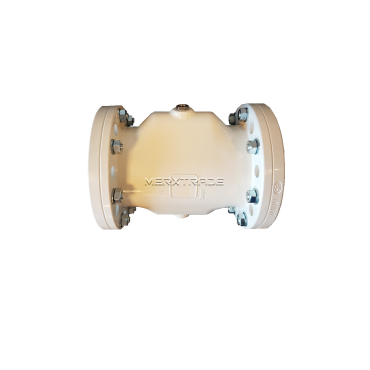

Pinch valve AKO type VF pneumatic flanged-Aluminium /EPDM HTEC-PN10
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Model: | Pinch valve AKO | Material body: | Aluminium AlSi10Mg |
| Connection: | Flanged PN10 | Material sleeve | EPDM HTEC |
| Actuating: | Pneumatic | Class. sleeve: | FDA approved food quality |
| Pressure: | 6bar ≥DN150 4bar >DN200 3bar > | Finish: |
Powder coated 60-80μm white RAL9010
|
| Temperature: | - 10°C ~ 120°C | Conform: | PED (97/23/EC) and ATEX |
Datasheet (PDF)
| SKU | MXT-2080330000 |
|---|
| Body material | Aluminium |
|---|---|
| Seat | EPDM |
VF040.04HTEC.33.30LA, VF050.04HTEC.33.30LA, VF065.04HTEC.33.30LA, VF080.04HTEC.33.30LA, VF100.04HTEC.33.30LA, VF125.04HTEC.33.30LA, VF150.04HTEC.33.30LA, VF200.04HTEC.33.30LA, VF250.04HTEC.33.30LA, VF300.04HTEC.33.30LA
