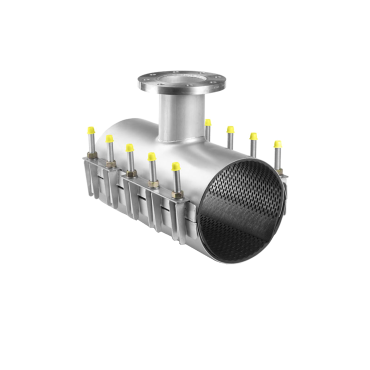

Pipe clamp St.St. 304/EPDM + flange DN125 PN4/6/10/16 Lenght 400mm

Model:	Pipe clamp with flange	Material body:	Stainless steel 304
Connection:	Clamping & flange PN10/16	Material gasket:	EPDM
Pressure:	16 Bars up to DN600 see PDF	Material Flange:	Stainless steel 304
Temperature:	Max. 60°C	Note:	Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	99400E12500
Body material	Stainless-Steel 304
Seat	EPDM

View products

Grouped product items
SKU	Product Name	DN	Length	Ø D	€ / st	Qty
99400E12520	Pipe clamp St.St. 304/EPDM + flange DN125 PN16 Lenght 400mm Ø 151-161	125	400	151-161	€960.96	- +
99400E12521	Pipe clamp St.St. 304/EPDM + flange DN125 PN16 Lenght 400mm Ø 159-170	125	400	159-170	€960.96	- +
99400E12522	Pipe clamp St.St. 304/EPDM + flange DN125 PN16 Lenght 400mm Ø 165-175	125	400	165-175	€960.96	- +
99400E12523	Pipe clamp St.St. 304/EPDM + flange DN125 PN16 Lenght 400mm Ø 168-180	125	400	168-180	€960.96	- +
99400E12524	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 176-186	125	400	176-186	€960.96	- +
99400E12525	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 180-191	125	400	180-191	€960.96	- +
99400E12526	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 193-203	125	400	193-203	€985.53	- +
99400E12527	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 200-210	125	400	200-210	€985.53	- +
99400E12528	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 209-220	125	400	209-220	€985.53	- +
99400E12529	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 215-226	125	400	215-226	€1,001.91	- +
99400E12530	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 219-230	125	400	219-230	€1,001.91	- +
99400E12531	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 222-233	125	400	222-233	€1,001.91	- +
99400E12532	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 228-240	125	400	228-240	€1,001.91	- +
99400E12533	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 243-253	125	400	243-253	€1,001.91	- +
99400E12534	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 252-262	125	400	252-262	€1,001.91	- +
99400E12535	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 261-271	125	400	261-271	€1,001.91	- +
99400E12536	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 271-281	125	400	271-281	€1,104.29	- +
99400E12537	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 280-290	125	400	280-290	€1,104.29	- +
99400E12538	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 294-304	125	400	294-304	€1,104.29	- +
99400E12539	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 315-326	125	400	315-326	€1,122.03	- +
99400E12540	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 320-330	125	400	320-330	€1,122.03	- +
99400E12541	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 324-334	125	400	324-334	€1,122.03	- +
99400E12542	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 335-346	125	400	335-346	€1,122.03	- +
99400E12543	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 350	125	400	350	€1,172.54	- +
99400E12544	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 400	125	400	400	€1,218.95	- +
99400E12545	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 450	125	400	450	€1,227.14	- +
99400E12546	Pipe clamp St.St. 304/EPDM + flange DN125 PN10 Lenght 400mm Ø 500	125	400	500	€1,261.26	- +
99400E12547	Pipe clamp St.St. 304/EPDM + flange DN125 PN6 Lenght 400mm Ø 600	125	400	600	€1,281.74	- +
99400E12548	Pipe clamp St.St. 304/EPDM + flange DN125 PN4 Lenght 400mm Ø 700	125	400	700	€1,341.80	- +

Pipe clamp St.St. 304/EPDM + flange DN125 PN4/6/10/16 Lenght 400mm
