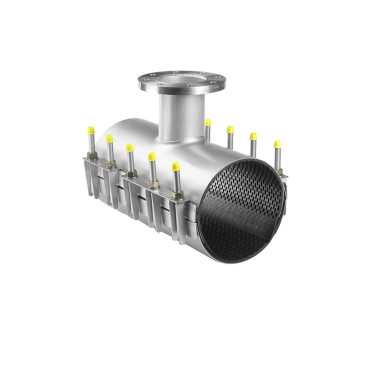

Pipe clamp St.St. 304/EPDM + flange DN50 PN3/4/6/10/16 Lenght 500mm

Skip to the beginning of the images gallery

Model:	Pipe clamp with flange	Material body:	Stainless steel 304
Connection:	Clamping & flange PN10/16	Material gasket:	EPDM
Pressure:	16 Bars up to DN600 see PDF	Material Flange:	Stainless steel 304
Temperature:	Max. 60°C	Note:	Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	99500E05000
Body material	Stainless-Steel 304
Seat	EPDM

View products

Grouped product items
SKU	Product Name	DN	Length	Ø D	€ / st	Qty
99500E05009	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 95-104	50	500	95-104	€735.74	- +
99500E05010	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 98-108	50	500	98-108	€735.74	- +
99500E05011	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 102-112	50	500	102-112	€735.74	- +
99500E05012	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 108-118	50	500	108-118	€760.31	- +
99500E05013	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 113-123	50	500	113-123	€760.31	- +
99500E05014	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 118-128	50	500	118-128	€760.31	- +
99500E05015	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 120-131	50	500	120-131	€760.31	- +
99500E05016	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 125-135	50	500	125-135	€788.97	- +
99500E05017	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 133-144	50	500	133-144	€788.97	- +
99500E05018	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 139-150	50	500	139-150	€788.97	- +
99500E05019	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 145-155	50	500	145-155	€788.97	- +
99500E05020	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 151-161	50	500	151-161	€857.22	- +
99500E05021	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 159-170	50	500	159-170	€857.22	- +
99500E05022	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 165-175	50	500	165-175	€857.22	- +
99500E05023	Pipe clamp St.St. 304/EPDM + flange DN50 PN16 Lenght 500mm Ø 168-180	50	500	168-180	€857.22	- +
99500E05024	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 176-186	50	500	176-186	€857.22	- +
99500E05025	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 180-191	50	500	180-191	€857.22	- +
99500E05026	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 193-203	50	500	193-203	€885.89	- +
99500E05027	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 200-210	50	500	200-210	€885.89	- +
99500E05028	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 209-220	50	500	209-220	€885.89	- +
99500E05029	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 215-226	50	500	215-226	€918.65	- +
99500E05030	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 219-230	50	500	219-230	€918.65	- +
99500E05031	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 222-233	50	500	222-233	€918.65	- +
99500E05032	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 228-240	50	500	228-240	€918.65	- +
99500E05033	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 243-253	50	500	243-253	€918.65	- +
99500E05034	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 252-262	50	500	252-262	€918.65	- +
99500E05035	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 261-271	50	500	261-271	€918.65	- +
99500E05036	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 271-281	50	500	271-281	€1,097.46	- +
99500E05037	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 280-290	50	500	280-290	€1,097.46	- +
99500E05038	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 294-304	50	500	294-304	€1,097.46	- +
99500E05039	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 315-326	50	500	315-326	€1,157.52	- +
99500E05040	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 320-330	50	500	320-330	€1,157.52	- +
99500E05041	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 324-334	50	500	324-334	€1,157.52	- +
99500E05042	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 335-346	50	500	335-346	€1,157.52	- +
99500E05043	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 350	50	500	350	€1,213.49	- +
99500E05044	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 400	50	500	400	€1,274.91	- +
99500E05045	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 450	50	500	450	€1,291.29	- +
99500E05046	Pipe clamp St.St. 304/EPDM + flange DN50 PN10 Lenght 500mm Ø 500	50	500	500	€1,318.59	- +
99500E05047	Pipe clamp St.St. 304/EPDM + flange DN50 PN6 Lenght 500mm Ø 600	50	500	600	€1,343.16	- +
99500E05048	Pipe clamp St.St. 304/EPDM + flange DN50 PN4 Lenght 500mm Ø 700	50	500	700	€1,411.41	- +
99500E05049	Pipe clamp St.St. 304/EPDM + flange DN50 PN4 Lenght 500mm Ø 750	50	500	750	€1,472.84	- +
99500E05050	Pipe clamp St.St. 304/EPDM + flange DN50 PN3 Lenght 500mm Ø 800	50	500	800	€1,591.59	- +

Pipe clamp St.St. 304/EPDM + flange DN50 PN3/4/6/10/16 Lenght 500mm
