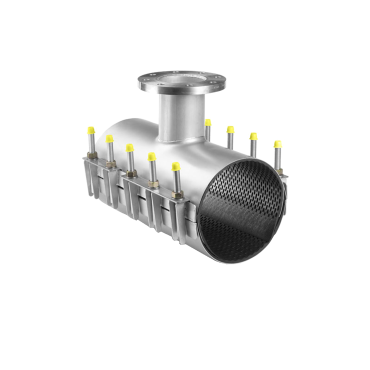

Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10/16 Lenght 300mm

Model:	Pipe clamp with flange	Material body:	Stainless steel 304
Connection:	Clamping & flange PN10/16	Material gasket:	EPDM HT
Pressure:	16 Bars up to DN600 see PDF	Material Flange:	Stainless steel 304
Temperature:	Max. 150°C	Note:	Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	99200H05000
Body material	Stainless-Steel 304
Seat	EPDM-High-Temperature

View products

Grouped product items
SKU	Product Name	DN	Length	Ø D	€ / st	Qty
99200H05008	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 87-97	50	300	87-97	€653.84	- +
99200H05009	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 95-104	50	300	95-104	€653.84	- +
99200H05010	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 98-108	50	300	98-108	€653.84	- +
99200H05011	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 102-112	50	300	102-112	€653.84	- +
99200H05012	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 108-118	50	300	108-118	€692.06	- +
99200H05013	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 113-123	50	300	113-123	€692.06	- +
99200H05014	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 118-128	50	300	118-128	€692.06	- +
99200H05015	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 120-131	50	300	120-131	€692.06	- +
99200H05016	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 125-135	50	300	125-135	€700.25	- +
99200H05017	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 133-144	50	300	133-144	€700.25	- +
99200H05018	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 139-150	50	300	139-150	€700.25	- +
99200H05019	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 145-155	50	300	145-155	€700.25	- +
99200H05020	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 151-161	50	300	151-161	€743.93	- +
99200H05021	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 159-170	50	300	159-170	€743.93	- +
99200H05022	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 165-175	50	300	165-175	€743.93	- +
99200H05023	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN16 Lenght 300mm Ø 168-180	50	300	168-180	€743.93	- +
99200H05024	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 176-186	50	300	176-186	€743.93	- +
99200H05025	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 180-191	50	300	180-191	€743.93	- +
99200H05026	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 193-203	50	300	193-203	€761.67	- +
99200H05027	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 200-210	50	300	200-210	€761.67	- +
99200H05028	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 209-220	50	300	209-220	€761.67	- +
99200H05029	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 215-226	50	300	215-226	€773.96	- +
99200H05030	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 219-230	50	300	219-230	€773.96	- +
99200H05031	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 222-233	50	300	222-233	€773.96	- +
99200H05032	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 228-240	50	300	228-240	€773.96	- +
99200H05033	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 243-253	50	300	243-253	€773.96	- +
99200H05034	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 252-262	50	300	252-262	€773.96	- +
99200H05035	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 261-271	50	300	261-271	€773.96	- +
99200H05036	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 271-281	50	300	271-281	€899.54	- +
99200H05037	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 280-290	50	300	280-290	€899.54	- +
99200H05038	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 294-304	50	300	294-304	€899.54	- +
99200H05039	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 315-326	50	300	315-326	€922.74	- +
99200H05040	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 320-330	50	300	320-330	€922.74	- +
99200H05041	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 324-334	50	300	324-334	€922.74	- +
99200H05042	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 335-346	50	300	335-346	€922.74	- +
99200H05043	Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10 Lenght 300mm Ø 350	50	300	350	€967.79	- +

Pipe clamp St.St. 304/EPDM HT + flange DN50 PN10/16 Lenght 300mm
