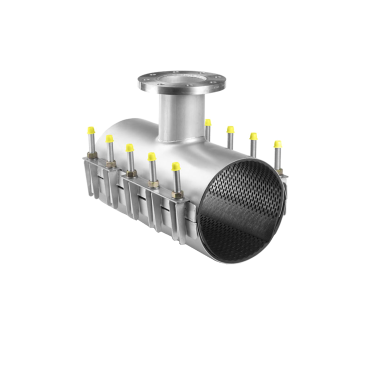

Pipe clamp St.St. 304/EPDM HT + flange DN65 PN3/4/6/10/16 Lenght 500mm

Model:	Pipe clamp with flange	Material body:	Stainless steel 304
Connection:	Clamping & flange PN10/16	Material gasket:	EPDM HT
Pressure:	16 Bars up to DN600 see PDF	Material Flange:	Stainless steel 304
Temperature:	Max. 150°C	Note:	Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	99500H06500
Body material	Stainless-Steel 304
Seat	EPDM-High-Temperature

View products

Grouped product items
SKU	Product Name	DN	Length	Ø D	€ / st	Qty
99500H06509	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 95-104	65	500	95-104	€885.89	- +
99500H06510	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 98-108	65	500	98-108	€885.89	- +
99500H06511	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 102-112	65	500	102-112	€885.89	- +
99500H06512	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 108-118	65	500	108-118	€920.01	- +
99500H06513	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 113-123	65	500	113-123	€920.01	- +
99500H06514	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 118-128	65	500	118-128	€920.01	- +
99500H06515	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 120-131	65	500	120-131	€920.01	- +
99500H06516	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 125-135	65	500	125-135	€954.14	- +
99500H06517	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 133-144	65	500	133-144	€954.14	- +
99500H06518	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 139-150	65	500	139-150	€954.14	- +
99500H06519	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 145-155	65	500	145-155	€954.14	- +
99500H06520	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 151-161	65	500	151-161	€1,036.04	- +
99500H06521	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 159-170	65	500	159-170	€1,036.04	- +
99500H06522	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 165-175	65	500	165-175	€1,036.04	- +
99500H06523	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN16 Lenght 500mm Ø 168-180	65	500	168-180	€1,036.04	- +
99500H06524	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 176-186	65	500	176-186	€1,036.04	- +
99500H06525	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 180-191	65	500	180-191	€1,036.04	- +
99500H06526	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 193-203	65	500	193-203	€1,076.99	- +
99500H06527	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 200-210	65	500	200-210	€1,076.99	- +
99500H06528	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 209-220	65	500	209-220	€1,076.99	- +
99500H06529	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 215-226	65	500	215-226	€1,111.11	- +
99500H06530	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 219-230	65	500	219-230	€1,111.11	- +
99500H06531	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 222-233	65	500	222-233	€1,111.11	- +
99500H06532	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 228-240	65	500	228-240	€1,111.11	- +
99500H06533	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 243-253	65	500	243-253	€1,111.11	- +
99500H06534	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 252-262	65	500	252-262	€1,111.11	- +
99500H06535	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 261-271	65	500	261-271	€1,111.11	- +
99500H06536	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 271-281	65	500	271-281	€1,322.69	- +
99500H06537	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 280-290	65	500	280-290	€1,322.69	- +
99500H06538	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 294-304	65	500	294-304	€1,322.69	- +
99500H06539	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 315-326	65	500	315-326	€1,397.76	- +
99500H06540	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 320-330	65	500	320-330	€1,397.76	- +
99500H06541	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 324-334	65	500	324-334	€1,397.76	- +
99500H06542	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 335-346	65	500	335-346	€1,397.76	- +
99500H06543	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 350	65	500	350	€1,466.01	- +
99500H06544	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 400	65	500	400	€1,541.09	- +
99500H06545	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 450	65	500	450	€1,560.20	- +
99500H06546	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN10 Lenght 500mm Ø 500	65	500	500	€1,591.59	- +
99500H06547	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN6 Lenght 500mm Ø 600	65	500	600	€1,622.99	- +
99500H06548	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN4 Lenght 500mm Ø 700	65	500	700	€1,704.89	- +
99500H06549	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN4 Lenght 500mm Ø 750	65	500	750	€1,773.14	- +
99500H06550	Pipe clamp St.St. 304/EPDM HT + flange DN65 PN3 Lenght 500mm Ø 800	65	500	800	€1,909.64	- +

Pipe clamp St.St. 304/EPDM HT + flange DN65 PN3/4/6/10/16 Lenght 500mm
