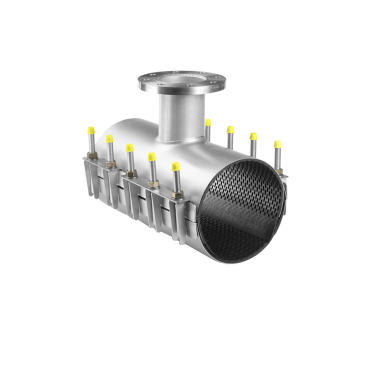

Pipe clamp St.St. 304/Viton + flange DN50 PN10/16 Lenght 200mm

Model:	Pipe clamp with flange	Material body:	Stainless steel 304
Connection:	Clamping & flange PN10/16	Material gasket:	Viton
Pressure:	16 Bars up to DN600 see PDF	Material Flange:	Stainless steel 304
Temperature:	Max. +200°C	Note:	Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	99100V5000
Body material	Stainless-Steel 304
Seat	FKM-FPM-Viton

View products

Grouped product items
SKU	Product Name	DN	Length	Ø D	€ / st	Qty
99100V5009	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 95-104	50	200	95-104	€2,843.30	- +
99100V5010	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 98-108	50	200	98-108	€2,843.30	- +
99100V5011	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 102-112	50	200	102-112	€2,843.30	- +
99100V5012	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 108-118	50	200	108-118	€2,896.53	- +
99100V5013	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 113-123	50	200	113-123	€2,896.53	- +
99100V5014	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 118-128	50	200	118-128	€2,896.53	- +
99100V5015	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 120-131	50	200	120-131	€2,896.53	- +
99100V5016	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 125-135	50	200	125-135	€2,936.12	- +
99100V5017	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 133-144	50	200	133-144	€2,936.12	- +
99100V5018	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 139-150	50	200	139-150	€2,936.12	- +
99100V5019	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 145-155	50	200	145-155	€2,936.12	- +
99100V5020	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 151-161	50	200	151-161	€3,117.66	- +
99100V5021	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 159-170	50	200	159-170	€3,117.66	- +
99100V5022	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 165-175	50	200	165-175	€3,117.66	- +
99100V5023	Pipe clamp St.St. 304/Viton + flange DN50 PN16 Lenght 200mm Ø 168-180	50	200	168-180	€3,117.66	- +
99100V5024	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 176-186	50	200	176-186	€3,117.66	- +
99100V5025	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 180-191	50	200	180-191	€3,117.66	- +
99100V5026	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 193-203	50	200	193-203	€3,177.72	- +
99100V5027	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 200-210	50	200	200-210	€3,177.72	- +
99100V5028	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 209-220	50	200	209-220	€3,177.72	- +
99100V5029	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 215-226	50	200	215-226	€3,248.70	- +
99100V5030	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 219-230	50	200	219-230	€3,248.70	- +
99100V5031	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 222-233	50	200	222-233	€3,248.70	- +
99100V5032	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 228-240	50	200	228-240	€3,248.70	- +
99100V5033	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 243-253	50	200	243-253	€3,248.70	- +
99100V5034	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 252-262	50	200	252-262	€3,248.70	- +
99100V5035	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 261-271	50	200	261-271	€3,248.70	- +
99100V5036	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 271-281	50	200	271-281	€3,377.01	- +
99100V5037	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 280-290	50	200	280-290	€3,377.01	- +
99100V5038	Pipe clamp St.St. 304/Viton + flange DN50 PN10 Lenght 200mm Ø 294-304	50	200	294-304	€3,377.01	- +

Pipe clamp St.St. 304/Viton + flange DN50 PN10/16 Lenght 200mm
