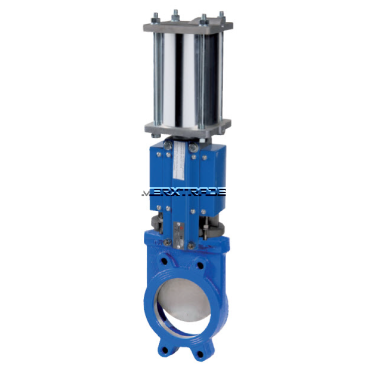

Pneumatic-Actuated-Double.acting Knife-Gate-Valve Uni-direct.-EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
UNI-Direct
DIN
| Â | Â | Â | Â |
| Model: | Unidirectional thightness | Material body: | Cast iron EN-GJL 250 GG25 |
| Connection | Flange PN10 wafer partially lug | Material gate: | Stainless steel AISI 304 |
| Actuating: | Pneumatic double acting | Material seat: | EPDM |
| Pressure: | up to DN200 10 bars above see PDF datasheet | Temperature: | -10°C/+90°C. |
Datasheet (PDF)
| SKU | MXT-5408171 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | SS-304. |
| Seat | EPDM |
