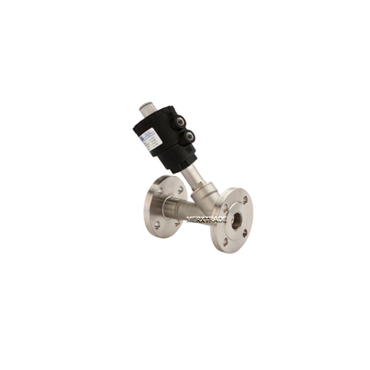

Pneumatic freeflow globe valve flanged St.St. Normaly closed
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | Freeflow | Material body: | Stainless steel AISI 316 |
| Connection: | Flanged PN16 | Material Clack: | Stainless steel AISI 316 |
| Pressure: | Body max 16 bar | Material seat: | PTFE |
| Temperature: | -10°C +180°C | Operation: | Pneumatic |
| Flow: | Enty below the seat | Position: | Normally closed |
Datasheet (PDF)
| SKU | MXT-1470F0000 |
|---|
| Body material | Stainless steel-CF8M-316 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | PTFE |
