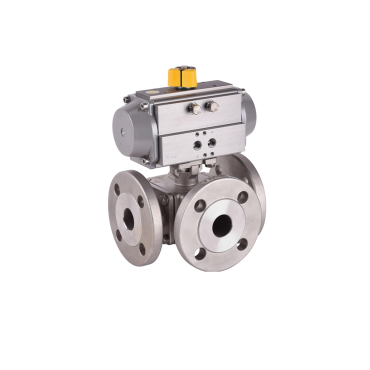

Ball valve 3-way T-bore pneumatic RE double-act Stainless.Steel -PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 3 piece body | Material body: | Stainless steel 1.4408 |
| Connection: | Thread BSPP ISO 228 | Material ball: | Stainless steel CF8M |
| Temperature: | -40°C / +180°C | Material seat: | PTFE+15% GF |
| Pressure: | 63 bar check PDF | Note: | Check technical spec. |
Datasheet (PDF)
| SKU | 786TRED0000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | PTFE filled with 15% glass |
