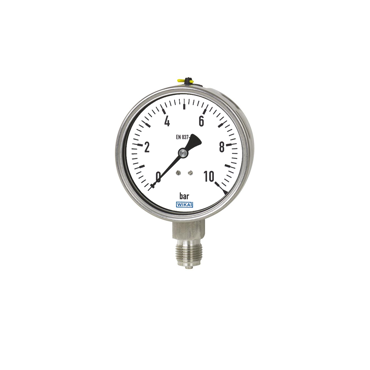

Pressure gauge safety-type bottom connection glycerine St.St.1.4301/1.4404 Ø 63mm - 1/4''
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
Ø 63mm
Glycerine
| Model: | Bourdon tube size Ø 63mm |
Material body: | Stainless steel 1.4301 |
| Connection: | Thread 1/4" lower mount | Material measuring: | Stainless steel 1.4404 |
| Pressure: | Vacuum and pressure | Material glass: | Laminated safety glass |
| Temperature: | max. +100°C | Material liquid: | Glycerine |
| Environment temp: | -20°C to +60°C | Pressure unit: | Bar |
| Protection class: | IP 65 | Brand / type | WIKA 233.30 |
| Class: | 1.6 | Type WIKA: | 233.30 |
| Suitable: Pressure gauge for extra safety in line with S 3 EN 837-1 Norm DIN 16006 |
| Solid Front blow-out back and unbreakable baffle wall. |
| Scale | Bar | Scale | Bar | Scale | Bar | Scale | Bar | Scale | Bar | Scale | Bar | |||||
| 0.05 | -1/0 | 0.05 | 0/1.6 | 0.2 | 0/6 | 1 | 0/25 | 5 | 0/100 | 20 | 0/400 | |||||
| 0.1 | -1/1.5 | 0.1 | 0/2.5 | 0.5 | 0/10 | 2 | 0/40 | 5 | 0/160 | 20 | 0/600 | |||||
| 0.05 | 0/1 | 0.2 | 0/4 | 0.5 | 0/16 | 2 | 0/60 | 10 | 0/250 | 50 | 0/1000 |
| SKU | MXT-1392S06300 |
|---|
| Pressure Gauge | Tube pressure gauge |
|---|---|
| Body material | Stainless-Steel |
| Disc / Ball / Wedge | Stainless.steel |
