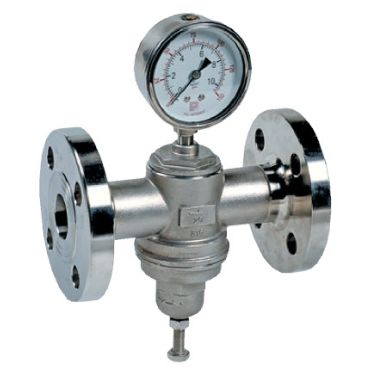

Pressure reducing valves-Stainless.steel-Flange.PN16

Model:	Pressure reducing	Material body:	St.steel CF8M
Connection:	Flanged PN16	Material gasket:	FKM / PTFE
Pressure:	16 Bars	Downsteam pressure:	1-6 and 4-10 Bar
Temperature:	Max. 180°C	Note:	Supplied with Ø 63 dry manometer indicating the downstream pressure.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-89401580015	Pressure reducing valves-Stainless.steel-15-press.1-6 bar	15	155	€735.00	- +
MXT-89401581025	Pressure reducing valves-Stainless.steel-25-press.4-10 bar	25	155	€1,014.30	- +
MXT-89401581020	Pressure reducing valves-Stainless.steel-20-press.4-10 bar	20	155	€889.35	- +
MXT-89401581015	Pressure reducing valves-Stainless.steel-15-press.4-10 bar	15	155	€735.00	- +
MXT-89401580025	Pressure reducing valves-Stainless.steel-25-press.1-6 bar	25	155	€1,014.30	- +
MXT-89401580020	Pressure reducing valves-Stainless.steel-20-press.1-6 bar	20	155	€889.35	- +
