Quick closing valve angle hydraulic/pneumatic/mechanical

Dikkan globe valves, mudbox, gate valves, groffilter, schuifafsluiters, klepafsluiters
DIN

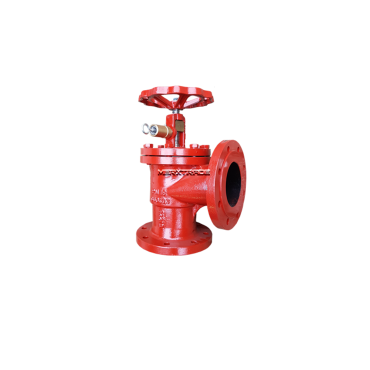

Model: Quick closing valve angle Material: Ductile iron
Connection: Flange PN10/16 Material disc: Stainless steel
Temperature: -10 °C to +150 °C Material seat: Stainless steel
Operation: Hydraulic / pneumatic/mechanical Option: Hydraulic impuls unit
Use: Shipbuilding, marine, industry, agriculture, heating systems

These valves comply with the requirements of the following classification societies:
Lloyds Register (LR), Bureau Veritas (BV), Germanischer Lloyd (GL), Det Norske Veritas (DNV)

In combination with: Hydraulic Impuls unit MXT-1010600001

download Datasheet (PDF)
SKU MXT-111248000
Body material Ductile-EN-GJS400-18-LT-GGG40.3
Disc / Ball / Wedge X14CrMoS17
Seat X12Cr13
lloyds-register bureauveritas germanische-lloyds dnv ce
15
90
IMPA 874631 / 874611
€572.00
Qty
minus-sm
plus-sm
20
95
IMPA 874632 / 874612
€592.00
Qty
minus-sm
plus-sm
25
100
IMPA 874633 / 874613
€658.00
Qty
minus-sm
plus-sm
32
105
IMPA 874634 / 874614
€713.00
Qty
minus-sm
plus-sm
40
115
IMPA 874635 / 874615
€856.00
Qty
minus-sm
plus-sm
50
125
IMPA 874636 / 874616
€966.00
Qty
minus-sm
plus-sm
65
145
IMPA 874637 / 874617
€1,268.00
Qty
minus-sm
plus-sm
80
155
IMPA 874638 / 874618
€1,441.00
Qty
minus-sm
plus-sm
100
175
IMPA 874639 / 874619
€2,125.00
Qty
minus-sm
plus-sm
125
200.
IMPA 874640 / 874620
€2,889.00
Qty
minus-sm
plus-sm
150
225
IMPA 874647 / 874643
€3,515.00
Qty
minus-sm
plus-sm
200
275.
IMPA 874648 / 874644
€3,148.95
Qty
minus-sm
plus-sm
