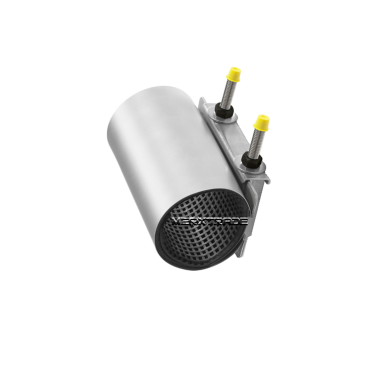

Repair clamp 1 part St.St. 304/Viton PN10/16 length 400mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	Viton
Pressure:	10/16 bars see PDF
Temperature:	+200°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS14V0000
Body material	Stainless-Steel 304
Seat	FKM-FPM-Viton

View products

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS14V0013	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 63-70	400	63-70	€1,827.05	- +
2MS14V0014	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 67-74	400	67-74	€1,827.05	- +
2MS14V0015	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 70-77	400	70-77	€1,827.05	- +
2MS14V0016	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 73-80	400	73-80	€1,836.48	- +
2MS14V0017	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 75-83	400	75-83	€1,836.48	- +
2MS14V0018	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 82-90	400	82-90	€1,848.02	- +
2MS14V0019	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 87-97	400	87-97	€1,848.02	- +
2MS14V0020	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 95-104	400	95-104	€1,848.02	- +
2MS14V0021	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 98-108	400	98-108	€1,972.59	- +
2MS14V0022	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 102-112	400	102-112	€2,007.72	- +
2MS14V0023	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 108-118	400	108-118	€2,085.28	- +
2MS14V0024	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 113-123	400	113-123	€2,094.54	- +
2MS14V0025	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 118-128	400	118-128	€2,094.54	- +
2MS14V0026	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 120-131	400	120-131	€2,094.54	- +
2MS14V0027	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 125-135	400	125-135	€2,094.54	- +
2MS14V0028	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 133-144	400	133-144	€2,153.25	- +
2MS14V0029	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 139-150	400	139-150	€2,153.25	- +
2MS14V0030	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 145-155	400	145-155	€2,162.67	- +
2MS14V0031	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 151-161	400	151-161	€2,198.33	- +
2MS14V0032	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 159-170	400	159-170	€2,198.33	- +
2MS14V0033	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 165-175	400	165-175	€2,219.12	- +
2MS14V0034	Repair clamp 1 part St.St. 304/Viton PN16 length 400mm Ø 168-180	400	168-180	€2,219.12	- +
2MS14V0035	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 176-186	400	176-186	€2,589.87	- +
2MS14V0036	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 180-191	400	180-191	€2,634.78	- +
2MS14V0037	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 193-203	400	193-203	€2,679.33	- +
2MS14V0038	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 200-210	400	200-210	€2,813.35	- +
2MS14V0039	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 209-220	400	209-220	€2,813.35	- +
2MS14V0040	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 215-226	400	215-226	€2,813.35	- +
2MS14V0041	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 219-230	400	219-230	€3,036.27	- +
2MS14V0042	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 222-233	400	222-233	€3,036.27	- +
2MS14V0043	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 228-240	400	228-240	€3,148.97	- +
2MS14V0044	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 243-253	400	243-253	€3,214.49	- +
2MS14V0045	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 252-262	400	252-262	€3,527.24	- +
2MS14V0046	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 261-271	400	261-271	€3,996.72	- +
2MS14V0047	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 271-281	400	271-281	€3,996.72	- +
2MS14V0048	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 280-290	400	280-290	€3,996.72	- +
2MS14V0049	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 294-304	400	294-304	€3,996.72	- +
2MS14V0050	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 315-326	400	315-326	€4,076.74	- +
2MS14V0051	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 320-330	400	320-330	€4,076.74	- +
2MS14V0052	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 324-334	400	324-334	€4,076.74	- +
2MS14V0053	Repair clamp 1 part St.St. 304/Viton PN10 length 400mm Ø 335-346	400	335-346	€4,139.99	- +

Repair clamp 1 part St.St. 304/Viton PN10/16 length 400mm
