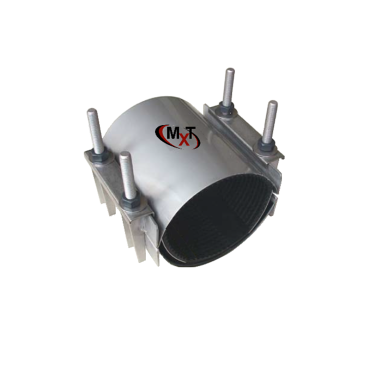

Repair clamp 2 part St.St. 304/EPDM HT PN10/16 length 250mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	EPDM HT
Pressure:	10/16 bars see PDF
Temperature:	+150°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS22H0000
Body material	Stainless-Steel 304
Seat	EPDM-High-Temperature

View products

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS22H0008	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 88-110	250	88-110	€298.75	- +
2MS22H0009	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 108-128	250	108-128	€303.20	- +
2MS22H0010	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 112-134	250	112-134	€310.35	- +
2MS22H0011	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 120-140	250	120-140	€317.58	- +
2MS22H0012	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 133-155	250	133-155	€334.67	- +
2MS22H0013	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 138-160	250	138-160	€337.62	- +
2MS22H0014	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 158-180	250	158-180	€372.07	- +
2MS22H0015	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 250mm Ø 168-190	250	168-190	€392.11	- +
2MS22H0016	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 190-210	250	190-210	€399.89	- +
2MS22H0017	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 195-217	250	195-217	€411.27	- +
2MS22H0018	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 210-230	250	210-230	€411.27	- +
2MS22H0019	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 216-238	250	216-238	€413.92	- +
2MS22H0020	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 225-246	250	225-246	€422.64	- +
2MS22H0021	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 238-260	250	238-260	€422.64	- +
2MS22H0022	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 251-271	250	251-271	€546.22	- +
2MS22H0023	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 273-293	250	273-293	€549.19	- +
2MS22H0024	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 295-315	250	295-315	€553.40	- +
2MS22H0025	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 314-335	250	314-335	€567.21	- +
2MS22H0026	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 322-344	250	322-344	€575.26	- +
2MS22H0027	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 334-354	250	334-354	€575.26	- +
2MS22H0028	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 250mm Ø 340-360	250	340-360	€575.26	- +

Repair clamp 2 part St.St. 304/EPDM HT PN10/16 length 250mm
