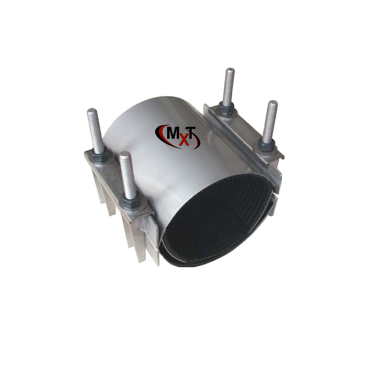

Repair clamp 2 part St.St. 304/EPDM HT PN10/16 length 300mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	EPDM HT
Pressure:	10/16 bars see PDF
Temperature:	+150°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS23H0000
Body material	Stainless-Steel 304
Seat	EPDM-High-Temperature

View products

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS23H0008	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 88-110	300	88-110	€308.85	- +
2MS23H0009	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 108-128	300	108-128	€317.58	- +
2MS23H0010	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 112-134	300	112-134	€340.65	- +
2MS23H0011	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 120-140	300	120-140	€347.80	- +
2MS23H0012	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 133-155	300	133-155	€351.95	- +
2MS23H0013	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 138-160	300	138-160	€357.66	- +
2MS23H0014	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 158-180	300	158-180	€402.27	- +
2MS23H0015	Repair clamp 2 part St.St. 304/EPDM HT PN16 length 300mm Ø 168-190	300	168-190	€406.47	- +
2MS23H0016	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 190-210	300	190-210	€416.90	- +
2MS23H0017	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 195-217	300	195-217	€425.28	- +
2MS23H0018	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 210-230	300	210-230	€425.28	- +
2MS23H0019	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 216-238	300	216-238	€428.31	- +
2MS23H0020	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 225-246	300	225-246	€439.67	- +
2MS23H0021	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 238-260	300	238-260	€439.67	- +
2MS23H0022	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 251-271	300	251-271	€574.97	- +
2MS23H0023	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 273-293	300	273-293	€578.57	- +
2MS23H0024	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 295-315	300	295-315	€583.32	- +
2MS23H0025	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 314-335	300	314-335	€600.41	- +
2MS23H0026	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 322-344	300	322-344	€606.11	- +
2MS23H0027	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 334-354	300	334-354	€606.11	- +
2MS23H0028	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 340-360	300	340-360	€606.11	- +
2MS23H0029	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 348-368	300	348-368	€624.66	- +
2MS23H0030	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 365-385	300	365-385	€624.66	- +
2MS23H0031	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 376-396	300	376-396	€651.57	- +
2MS23H0032	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 390-410	300	390-410	€651.57	- +
2MS23H0033	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 404-424	300	404-424	€658.75	- +
2MS23H0034	Repair clamp 2 part St.St. 304/EPDM HT PN10 length 300mm Ø 420-440	300	420-440	€674.64	- +

Repair clamp 2 part St.St. 304/EPDM HT PN10/16 length 300mm
