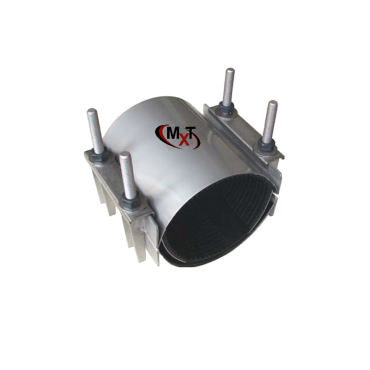

Repair clamp 2 part St.St. 304/EPDM PN3/4/6/10 length 600mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	EPDM
Pressure:	3/4/6/10 bars see PDF
Temperature:	+60°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS26E0000
Body material	Stainless-Steel 304
Seat	EPDM

View products

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS26E0025	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 314-335	600	314-335	€950.72	- +
2MS26E0026	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 322-344	600	322-344	€984.13	- +
2MS26E0027	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 334-354	600	334-354	€984.13	- +
2MS26E0028	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 340-360	600	340-360	€984.13	- +
2MS26E0029	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 348-368	600	348-368	€1,010.78	- +
2MS26E0030	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 365-385	600	365-385	€1,010.78	- +
2MS26E0031	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 376-396	600	376-396	€1,054.60	- +
2MS26E0032	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 390-410	600	390-410	€1,054.60	- +
2MS26E0033	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 404-424	600	404-424	€1,065.96	- +
2MS26E0034	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 420-440	600	420-440	€1,091.18	- +
2MS26E0035	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 440-460	600	440-460	€1,099.40	- +
2MS26E0036	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 457-477	600	457-477	€1,103.98	- +
2MS26E0037	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 468-488	600	468-488	€1,106.16	- +
2MS26E0038	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 488-508	600	488-508	€1,108.60	- +
2MS26E0039	Repair clamp 2 part St.St. 304/EPDM PN10 length 600mm Ø 500-520	600	500-520	€1,111.01	- +
2MS26E0040	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 520-540	600	520-540	€1,122.41	- +
2MS26E0041	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 545-565	600	545-565	€1,129.43	- +
2MS26E0042	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 568-588	600	568-588	€1,136.67	- +
2MS26E0043	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 586-606	600	586-606	€1,142.26	- +
2MS26E0044	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 600-620	600	600-620	€1,145.40	- +
2MS26E0045	Repair clamp 2 part St.St. 304/EPDM PN6 length 600mm Ø 625-645	600	625-645	€1,153.65	- +
2MS26E0046	Repair clamp 2 part St.St. 304/EPDM PN4 length 600mm Ø 705-725	600	705-725	€1,232.10	- +
2MS26E0047	Repair clamp 2 part St.St. 304/EPDM PN4 length 600mm Ø 730-750	600	730-750	€1,232.10	- +
2MS26E0048	Repair clamp 2 part St.St. 304/EPDM PN4 length 600mm Ø 755-775	600	755-775	€1,309.44	- +
2MS26E0049	Repair clamp 2 part St.St. 304/EPDM PN3 length 600mm Ø 805-825	600	805-825	€1,443.27	- +
2MS26E0050	Repair clamp 2 part St.St. 304/EPDM PN3 length 600mm Ø 835-855	600	835-855	€1,443.27	- +

Repair clamp 2 part St.St. 304/EPDM PN3/4/6/10 length 600mm
