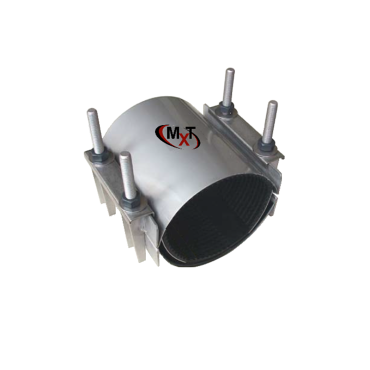

Repair clamp 2 part St.St. 304/NBR PN6/10/16 length 500mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	NBR
Pressure:	6/10/16 bars see PDF
Temperature:	+70°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS25N0000
Body material	Stainless-Steel 304
Seat	NBR

View products

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS25N0008	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 88-110	500	88-110	€428.88	- +
2MS25N0009	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 108-128	500	108-128	€439.50	- +
2MS25N0010	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 112-134	500	112-134	€442.70	- +
2MS25N0011	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 120-140	500	120-140	€454.51	- +
2MS25N0012	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 133-155	500	133-155	€468.33	- +
2MS25N0013	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 138-160	500	138-160	€487.00	- +
2MS25N0014	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 158-180	500	158-180	€554.52	- +
2MS25N0015	Repair clamp 2 part St.St. 304/NBR PN16 length 500mm Ø 168-190	500	168-190	€557.93	- +
2MS25N0016	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 190-210	500	190-210	€579.22	- +
2MS25N0017	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 195-217	500	195-217	€590.64	- +
2MS25N0018	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 210-230	500	210-230	€590.64	- +
2MS25N0019	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 216-238	500	216-238	€597.41	- +
2MS25N0020	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 225-246	500	225-246	€622.82	- +
2MS25N0021	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 238-260	500	238-260	€622.82	- +
2MS25N0022	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 251-271	500	251-271	€733.19	- +
2MS25N0023	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 273-293	500	273-293	€803.74	- +
2MS25N0024	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 295-315	500	295-315	€810.26	- +
2MS25N0025	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 314-335	500	314-335	€843.68	- +
2MS25N0026	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 322-344	500	322-344	€872.46	- +
2MS25N0027	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 334-354	500	334-354	€872.46	- +
2MS25N0028	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 340-360	500	340-360	€872.46	- +
2MS25N0029	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 348-368	500	348-368	€901.28	- +
2MS25N0030	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 365-385	500	365-385	€901.28	- +
2MS25N0031	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 376-396	500	376-396	€927.93	- +
2MS25N0032	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 390-410	500	390-410	€927.93	- +
2MS25N0033	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 404-424	500	404-424	€931.37	- +
2MS25N0034	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 420-440	500	420-440	€950.72	- +
2MS25N0035	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 440-460	500	440-460	€977.34	- +
2MS25N0036	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 457-477	500	457-477	€999.15	- +
2MS25N0037	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 468-488	500	468-488	€1,006.14	- +
2MS25N0038	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 488-508	500	488-508	€1,014.11	- +
2MS25N0039	Repair clamp 2 part St.St. 304/NBR PN10 length 500mm Ø 500-520	500	500-520	€1,019.03	- +
2MS25N0040	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 520-540	500	520-540	€1,033.75	- +
2MS25N0041	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 545-565	500	545-565	€1,043.00	- +
2MS25N0042	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 568-588	500	568-588	€1,048.51	- +
2MS25N0043	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 586-606	500	586-606	€1,055.31	- +
2MS25N0044	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 600-620	500	600-620	€1,060.38	- +
2MS25N0045	Repair clamp 2 part St.St. 304/NBR PN6 length 500mm Ø 625-645	500	625-645	€1,069.15	- +

Repair clamp 2 part St.St. 304/NBR PN6/10/16 length 500mm
